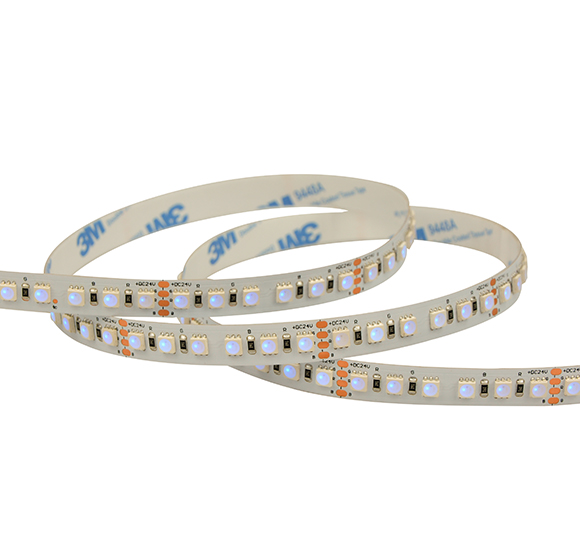

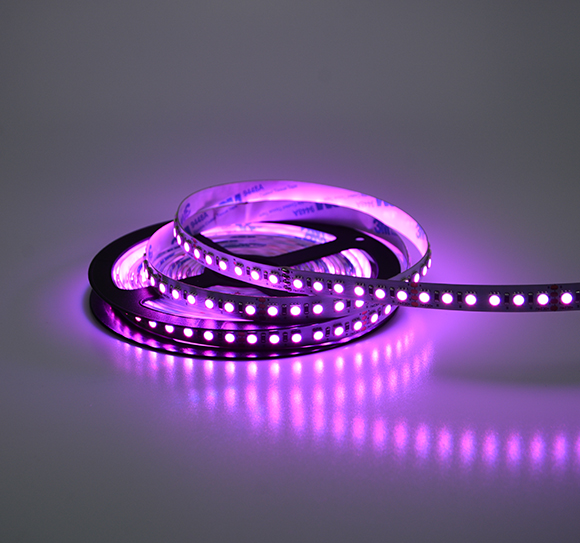

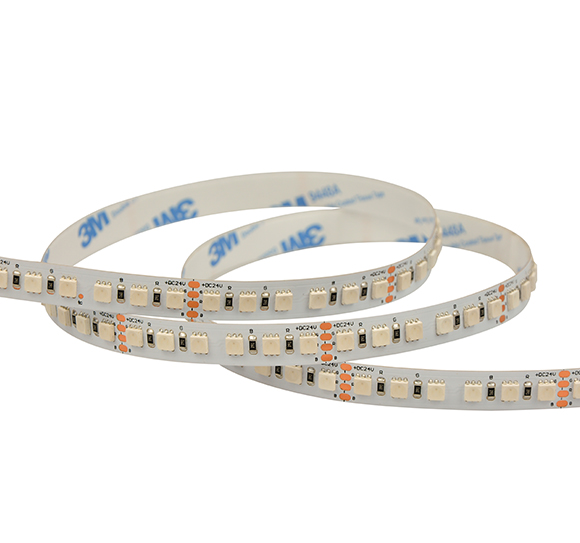

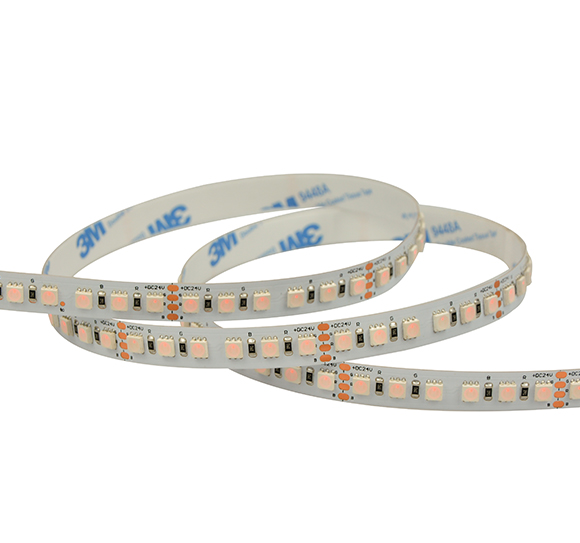

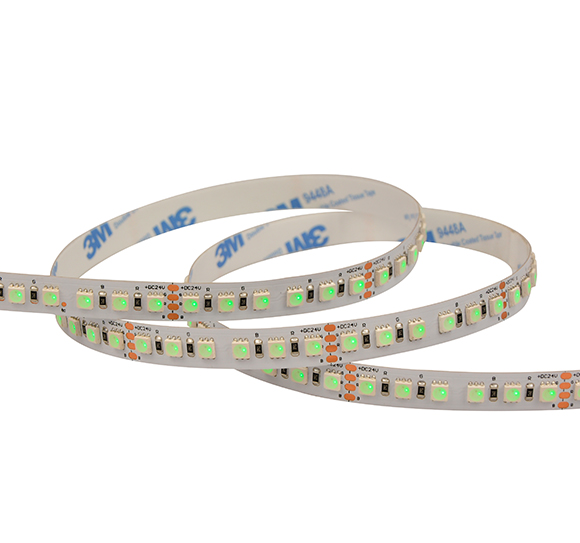

FL-24FS4040-120-RGB

RGB 4040 120 LEDs/m

FEATURES

  1. Long life 50,000 hours
  2. Safe low voltage (12Vdc or 24Vdc)
  3. Adopting new generation RGB SMD 4040 as light source
  4. Brighter, better lighting effect, higher lumen output
  5. Smaller SMD LED, lighting effect is more concentrated and uniform
  6. High CRI80 or CRI90
  7. High density 120 LEDs/m, dot light free, no dark light dot
  8. 3Oz of thickness FPCB for good heat dissipation, stable and reliable
  9. CE, EMC, ROHS, UL approved for safety
  10. 3 years warranty
  • SPECIFICATION

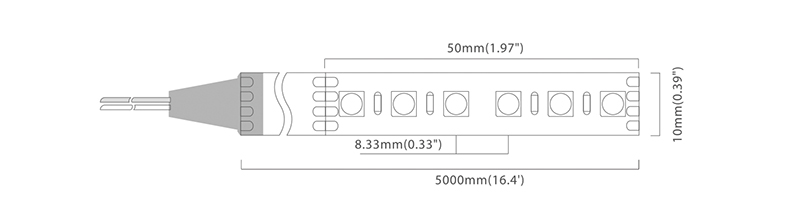

  • DIMENSION
  • DOWNLOAD
  • ACCESSORIES
PART NO.: VOLTAGE LENGTH LED QTY LED TYPE COLOR POWER LUMEN PCB WIDTH CUTTABLE UNIT CRI MAX RUN
V m Pcs/m K W lm mm mm Ra m
FL-24FS4040-120-RGB-IP20 24V 5 120 4040 RGB 18W / 10 50 >80 5
FL-24FS4040-120-RGB-IP20 24V 5 120 4040 RGB 18W / 10 50 >80 5
FL-24FS4040-120-RGB-IP20 24V 5 120 4040 RGB 18W / 10 50 >80 5


Datasheet

IMAGE PART NO. NAME DESCRIPTION
img200*123 ZF120-1208000 LED power supply 96W
LED adapter 96W (12V/8A, 24V4A)
img200*123 LS2 LED controller
LED controller 5-in-1 for single color, CCT, RGB, RGBW, RGBWW
img200*123 FL-P002 Aluminum profiles
FL-P002 aluminum profile, silver/white/black are available
