FL-24FS3527-120-CCT

Dynamic CCT 2-in-1 120 LEDs/m 24V

FEATURES

  1. Long life 50,000 hours
  2. Safe low voltage (12Vdc or 24Vdc)
  3. Ultra low power consumption, low energy efficiency
  4. Using high bright high stability Epistar 2-in-1 LED 2700-6500K color adjustable
  5. High CRI80 or CRI90 above
  6. 120° wide view angle
  7. Compatible with various of aluminum profiles
  8. Full dimmable with a separate lighting dimmer
  9. Suitable for cove, office, ,hotel, retail, architectural lighting etc.
  10. 3 years warranty
  • SPECIFICATION

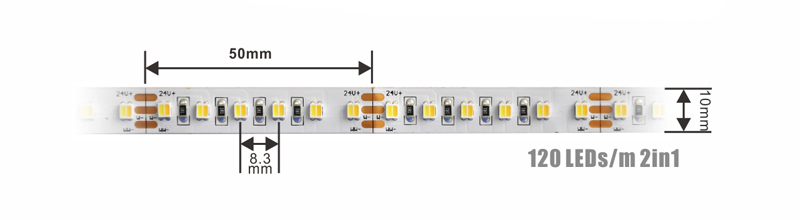

  • DIMENSION
  • DOWNLOAD
  • ACCESSORIES
PART NO.: VOLTAGE LENGTH LED QTY LED TYPE COLOR POWER LUMEN PCB WIDTH CUTTABLE UNIT CRI MAX RUN
V m Pcs/m K W lm mm mm Ra m
FL-24FS33527-120-CCT-IP20 24V 5 120 2835 2700-6500 18W 1400 10 50 >80 5
FL-24FS3527-120-CCT-IP20 24V 5 120 2835 2700-6500 18W 1400 10 50 >80 5
FL-24FS3527-120-CCT-IP20 24V 5 120 2835 2700-6500 18W 1400 10 50 >80 5


Datasheet

SPECTROMETER REPORT

IES

IMAGE PART NO. NAME DESCRIPTION
img200*123 ZF120-1208000 LED power supply 96W
LED adapter 96W (12V/8A, 24V4A)
img200*123 LS2 LED controller
LED controller 5-in-1 for single color, CCT, RGB, RGBW, RGBWW
img200*123 FL-P002 Aluminum profiles
FL-P002 aluminum profile, silver/white/black are available

INQUIRE NOW
