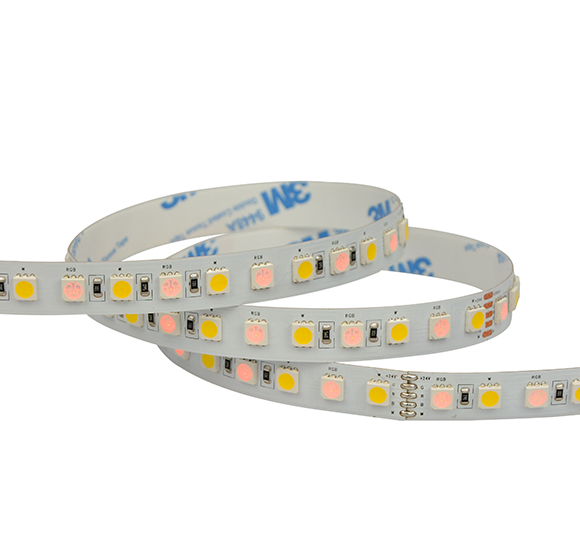

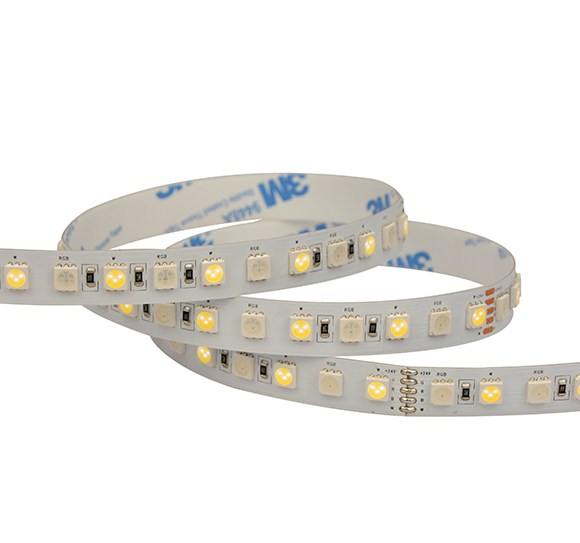

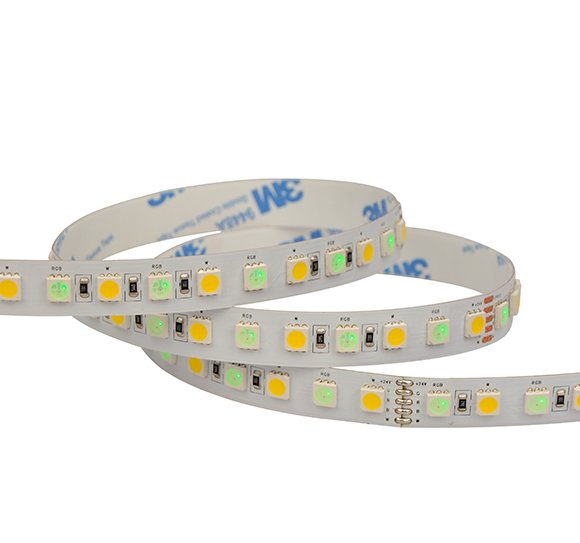

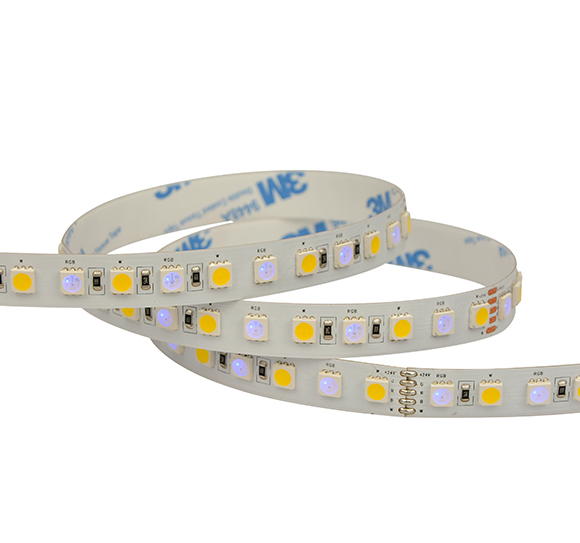

FL-24FS5050-96-RGB+W (RGBW)

Multi-colors RGB+W RGBW 96 LEDs/m 24V

FEATURES

  1. Long life 50,000 hours
  2. Safe low voltage (12Vdc or 24Vdc)
  3. Ultra-low power consumption, low energy efficiency
  4. Multi-colors RGB+W RGBW 96 LEDs/m 24V
  5. High CRI80 or CRI90 above
  6. 120° wide view angle
  7. Compatible with various aluminum profiles
  8. Full dimmable with a separate lighting dimmer
  9. Suitable for cove, office, , hotel, retail, architectural lighting, etc.
  10. 3 years warranty
  • SPECIFICATION

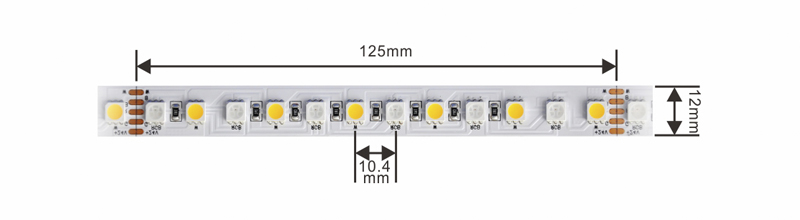

  • DIMENSION
  • DOWNLOAD
  • ACCESSORIES
PART NO.: VOLTAGE LENGTH LED QTY LED TYPE COLOR POWER LUMEN B WIDTH CUTTABLE UNIT CRI MAX RUN
V m Pcs/m K W lm mm mm Ra m
FL-24FS5050-96-RGB+WW-IP20 24V 5 96 5050 RGB+WW/RGBWW 22W / 12 125 >80 5
FL-24FS5050-96-RGB+NW-IP20 24V 5 96 5050 RGB+NW/RGBNW 22W / 12 125 >80 5
FL-24FS5050-96-RGB+CW-IP20 24V 5 96 5050 RGB+CW/RGBCW 22W / 12 125 >80 5


Datasheet

SPECTROMETER REPORT

IES

IMAGE PART NO. NAME DESCRIPTION
img200*123 ZF120-1208000 LED power supply 96W
LED adapter 96W (12V/8A, 24V4A)
img200*123 LS2 LED controller
LED controller 5-in-1 for single color, CCT, RGB, RGBW, RGBWW
img200*123 FL-P002 Aluminum profiles
FL-P002 aluminum profile, silver/white/black are available
