FL-SFW20

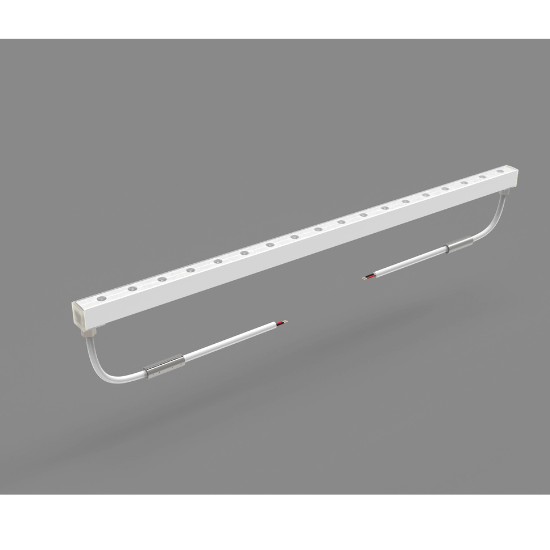

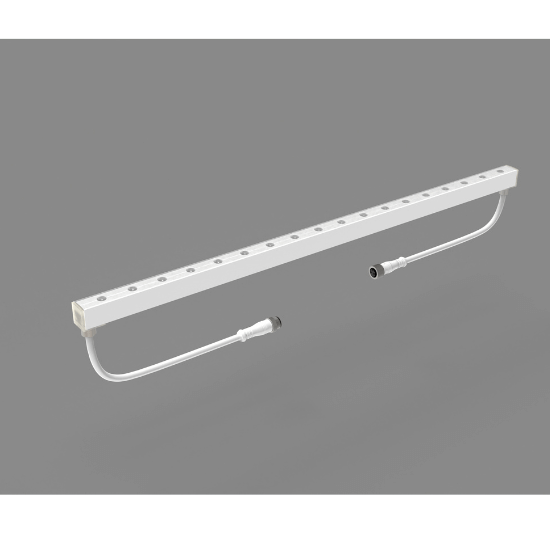

SFW20 Mono Color/Tunable White/Pixel SPI RGBW Silicone Flexible LED Wall Grazer

FEATURES

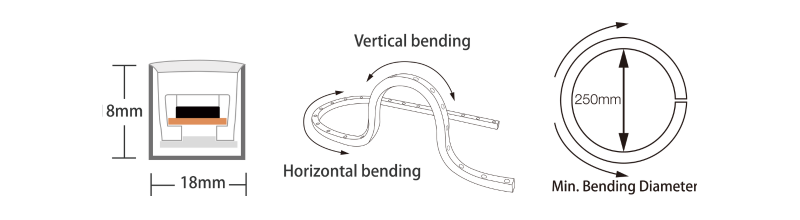

  1. Section size: 18*18mm

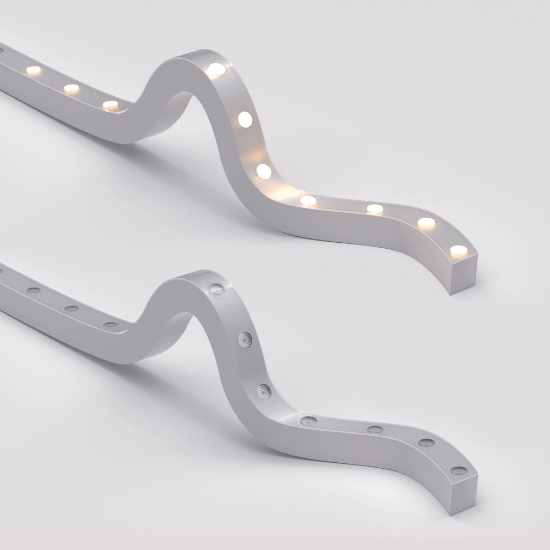

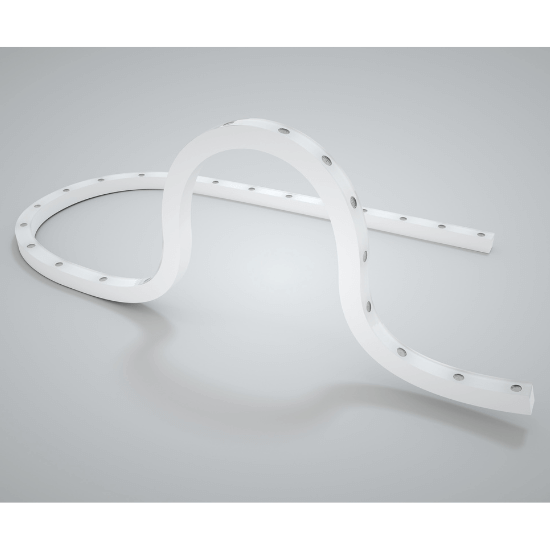

  2. Vertical & Horizontal Bending
  3. The minimum bending diameter of Horizontal bending is 250mm
  4. The minimum bending diameter of Vertical bending is 400mm
  5. IP68 rated, can use in spa submersible environments, up to a depth of 2 meters
  6. LED Qty: 24 LEDs
  7. Output power: 18W
  8. Output voltage: 24V DC
  9. Cutting unit: 6 LEDs
  10. Cutting length: 250mm

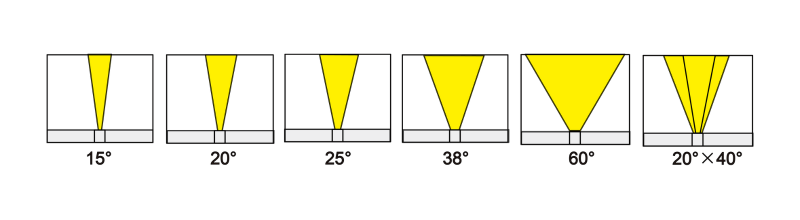

  11. Optional lens:15°, 20°, 25°, 38°, 60°, 20°x40°
  12. Dimmable
  13. Available in Mono color, Tunable white color and Pixel SPI RGBW
  14. Lumen Maintenance: 70.000 Hours L70@25°C, 50.000 Hours L70@50°C
  15. Operating:-40°C to 55°
  16. Submersible
  17. UV resistant, Flame resistant, Saltwater resistant,Solvents resistant, Dirt resistant, IK08
  18. 5 years warranty
  19. CE ROHS UL approval
  • SPECIFICATION
  • DIMENSION
  • DOWNLOAD
  • ACCESSORIES
PART NO.: VOLTAGE LENGTH LED QTY LED TYPE COLOR POWER LUMEN SIZE CUTTABLE UNIT CRI MAX RUN
V m Pcs/m SMD K W lm mm mm Ra m
FL-SFW20-24-3535-CC-WW 24V 5 24 3535 3000K 18W / 18X18 250mm >90 5
FL-SFW20-24-3535-CC-NW 24V 5 24 3535 4000K 18W / 18X18 250mm >90 5
FL-SFW20-24-3535-CC-W 24V 5 24 3535 6000K 18W / 18X18 250mm >90 5

IMAGE PART NO. NAME DESCRIPTION
img200*123 ZF120A-1205000 LED power supply 60W
LED driver 60W (12V/5A, 24V,2.5A)
img200*123 ZF120-1208000 LED power supply 96W
LED adapter 96W (12V/8A, 24V4A)
