FL-1616A

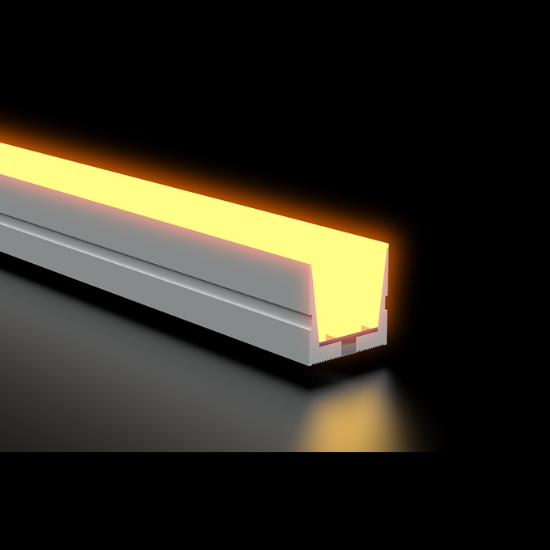

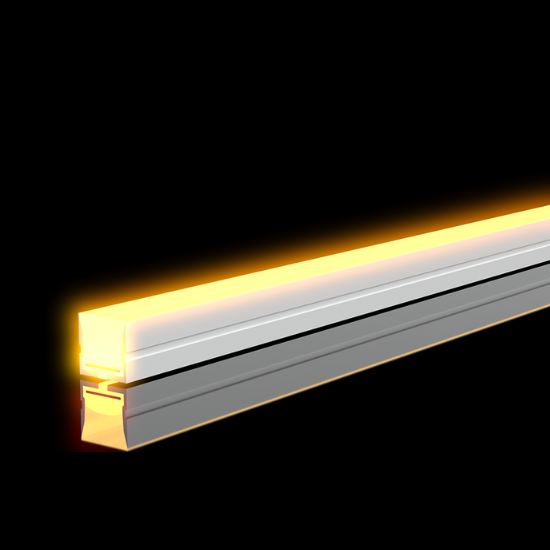

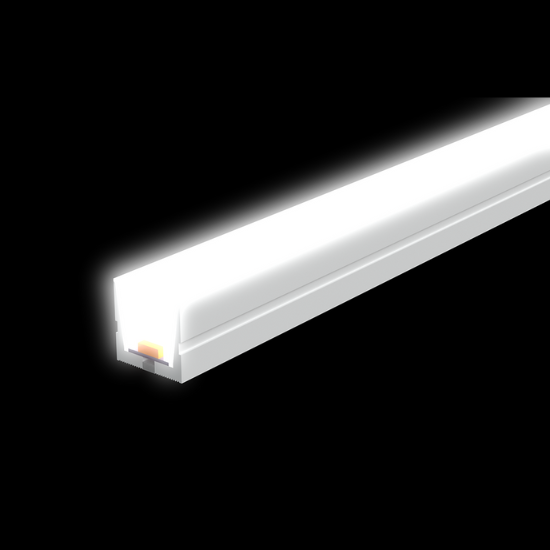

16x26mm LED neon flex verticall bendi top bend

FEATURES

  1. Long life 50,000 hours
  2. Safe low voltage (12Vdc or 24Vdc)
  3. Ultra low power consumption, low energy efficiency
  4. Flexible Bending, uniform light distribution,light dot-free
  5. Minimum cutting 50mm for DIY, Minimum bending diameter 60mm
  6. High UV and salt spray corrosion resistant,environment friendly
  7. IP67 with silicon glue process
  8. Full dimmable with a separate lighting dimmer
  9. Suitable for cove, office, ,hotel, retail, architectural lighting etc.
  10. 3 years warranty
  11. CE ROHS UL approval
  • SPECIFICATION

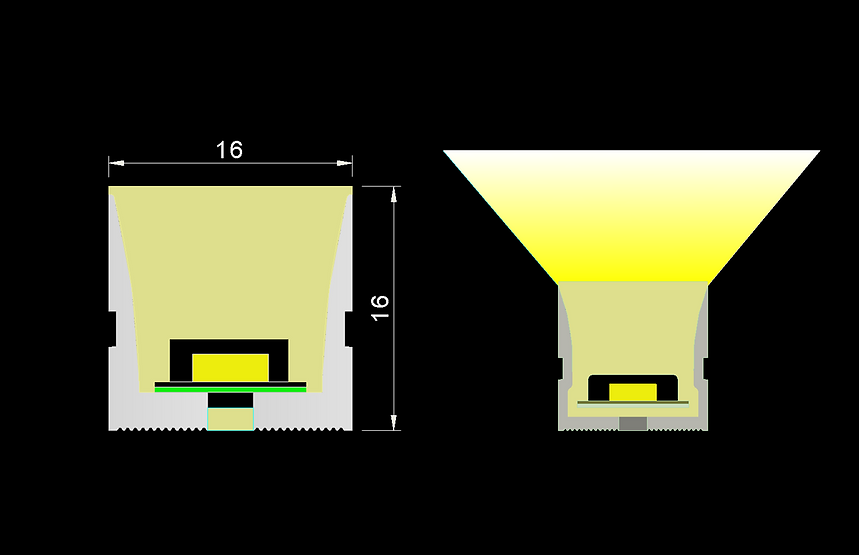

  • DIMENSION
  • DOWNLOAD
  • ACCESSORIES
PART NO.: VOLTAGE LENGTH LED QTY LED TYPE COLOR POWER LUMEN PCB WIDTH CUTTABLE UNIT CRI MAX RUN
V m Pcs/m K W lm mm mm Ra m
FL-S1616A-WW 24V 5 120 2835 3000K 9.6W 500 16X16 42 >80 5
FL-S1616A-NW 24V 5 120 2835 4000K 9.6W 470 16X16 42 >80 5
FL-S1616A-W 24V 5 120 2835 6000K 9.6W 420 16X16 42 >80 5

IMAGE PART NO. NAME DESCRIPTION
img200*123 ZF120A-1205000 LED power supply 60W
LED driver 60W (12V/5A, 24V,2.5A)
img200*123 ZF120-1208000 LED power supply 96W
LED adapter 96W (12V/8A, 24V4A)
