FL-12LC3030-9-RGB

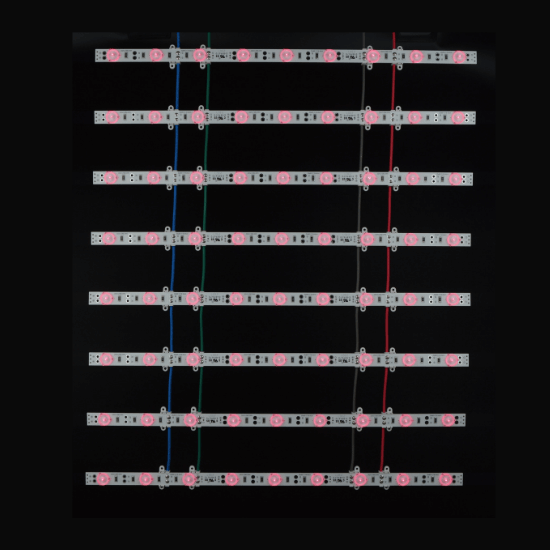

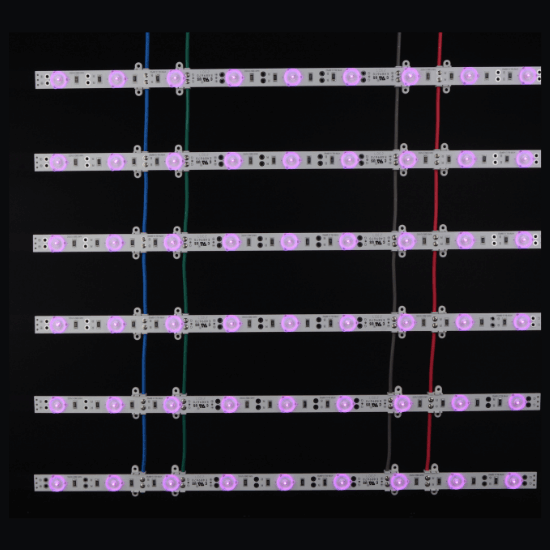

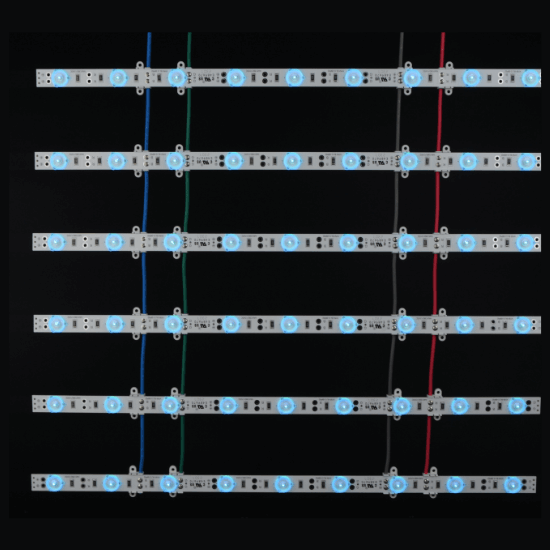

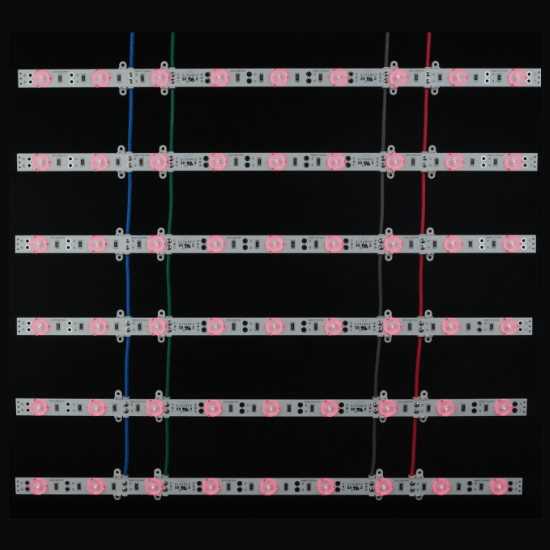

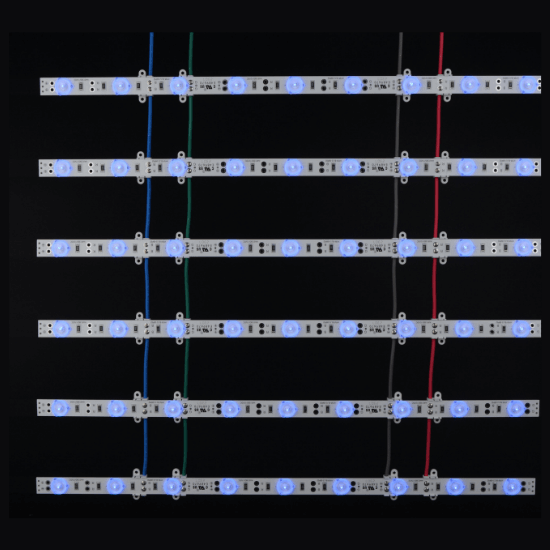

Back-lit light bar 3030 9 Leds RGB with lens 160° for light box

FEATURES

  1. Long life 50,000 hours
  2. 12V Input voltage
  3. Dimension: 500*16.8mm*1.6mm
  4. Spacing: 8cm
  5. Using high bright high stability 3030 SMD LED
  6. IP20 indoor use only
  7. Back-lit illumination, suitable for light box with a depth of 80-200mm
  8. 160° wide view angle with lens
  9. The spacing between two bars can be adjustable or customized
  10. Compatible with various of middle & big light box
  11. Fast conector, plug and play
  12. High precision resistor without flickering
  13. 3 years warranty
  • SPECIFICATION

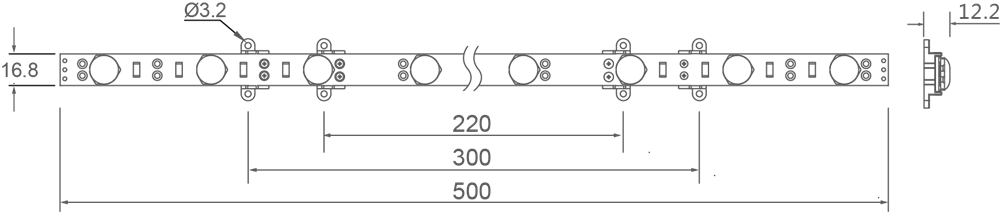

  • DIMENSION
  • DOWNLOAD
  • ACCESSORIES
PART NO.: VOLTAGE LENGTH LED QTY LED TYPE COLOR POWER LUMEN DIMENSION CUTTABLE UNIT CRI MAX RUN
Vdc mm Pcs/m K W lm mm mm Ra Pcs
FL-12LC3030-9-RGB 12V 500 9 3030 RGB 5.4W / 500*16.8*1.6 No >80 40




IMAGE PART NO. NAME DESCRIPTION
img200*123 ZF120-1208000 LED power supply 96W
LED adapter 96W (12V/8A, 24V4A)
img200*123 LS2 LED controller
LED controller 5-in-1 for single color, CCT, RGB, RGBW, RGBWW
img200*123 FL-P002 Aluminum profiles
FL-P002 aluminum profile, silver/white/black are available
