FL-IR001D

Hand sensor switch ON/OFF automatically and dimming

FEATURES

  1. Input: DC12-24V
  2. Current: 8A
  3. Watt: 96W-12V; 192W-24V
  4. Dectection Range: <=10cm
  5. Hold on the hand over the sesnor of 3 seconds for dimming from 1%-100%
  6. Dimension: L55mm *W10mm

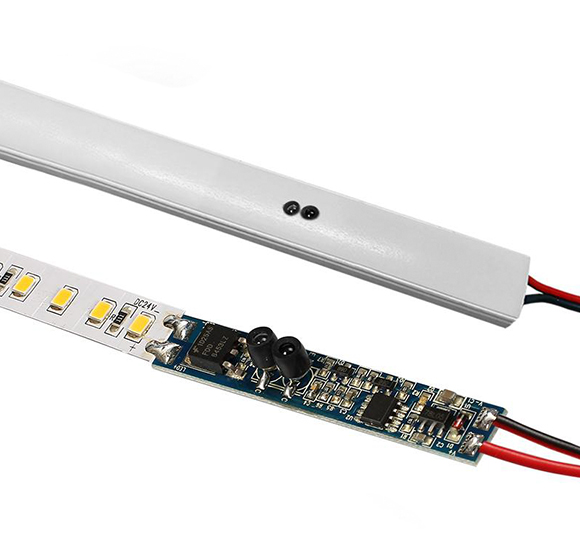

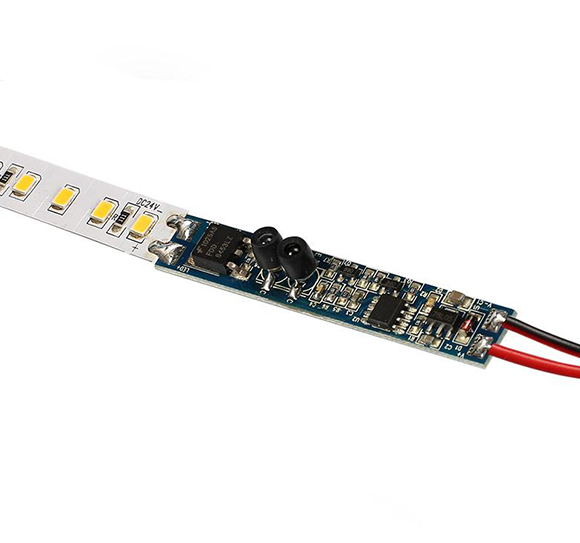

  7. Suitable for LED linear light that needs touch function
  8. Function: Hand sensor switch ON/OFF automatically and dimming
  9. 12-24V with memory function
  10. IP20 indoor use only
  11. CE and RoHs
  12. 2 years warranty
  • SPECIFICATION
  • DIMENSION
  • DOWNLOAD
PART NO.: COMPATIBLE WIDTH COMPATIBLE POWER WATERPROOF LEVEL DIMENSION INPUT VOLTAGE OUTPUT CURRENT HEIGHT OF SPRING FUNCTION
mm W IP mm V A mm
FL-IR001D 10 <192 (24V) 20 55*10 12-24 8 N/A Hand Sensor ON/OFF and dimming



Datasheet
