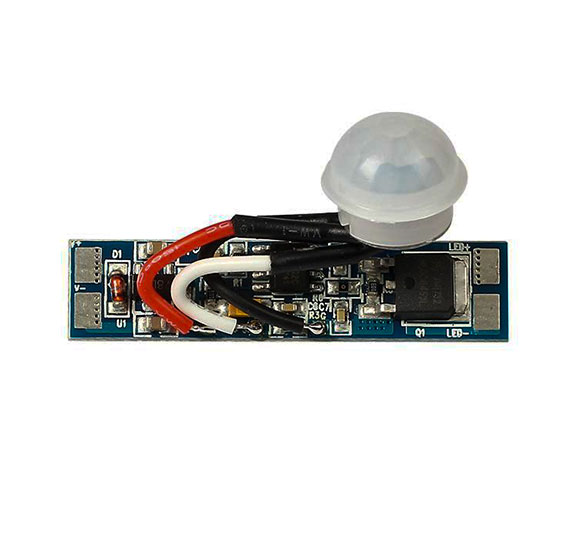

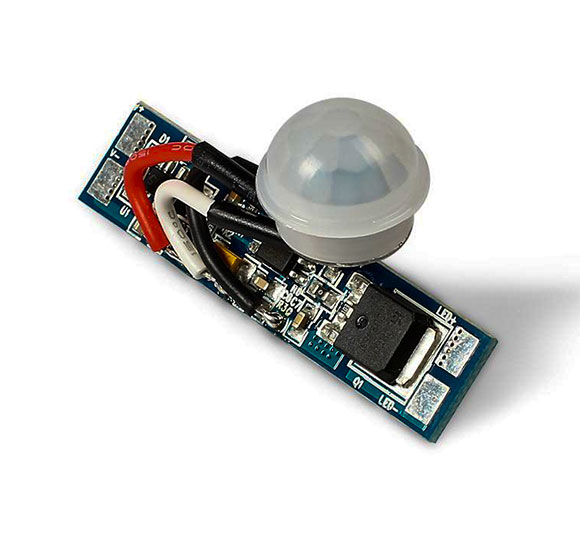

FL-PIR001

PIR Motion sensor switch ON/OFF automatically

FEATURES

  1. Input: DC12-24V
  2. Current: 8A
  3. Watt: 96W-12V; 192W-24V
  4. Delay Time: About 40 seconds
  5. Dectection Range: within 2 MeterS
  6. Dimension: L43mm *W10mm
  7. Suitable for LED linear light that needs touch function
  8. Function: PIR motion sensor switch ON/OFF automatically
  9. IP20 indoor use only
  10. CE and RoHs
  11. 2 years warranty
  • SPECIFICATION
  • DIMENSION
  • DOWNLOAD
PART NO.: COMPATIBLE WIDTH COMPATIBLE POWER WATERPROOF LEVEL DIMENSION INPUT VOLTAGE OUTPUT CURRENT HEIGHT OF SPRING FUNCTION
mm W IP mm V A mm
FL-PIR001 10 <192 (24V) 20 43*10 12-24 8 30 Motion ON/OFF



Datasheet
