FL-AT4

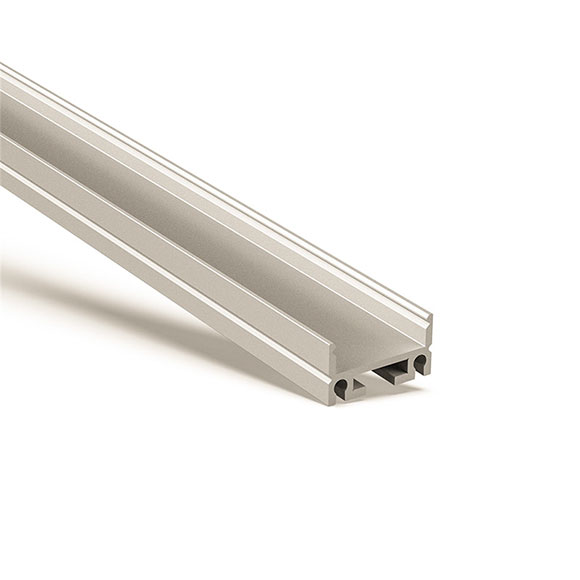

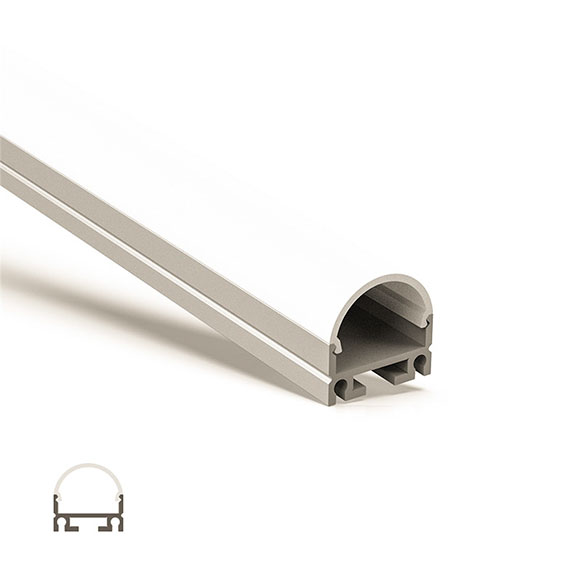

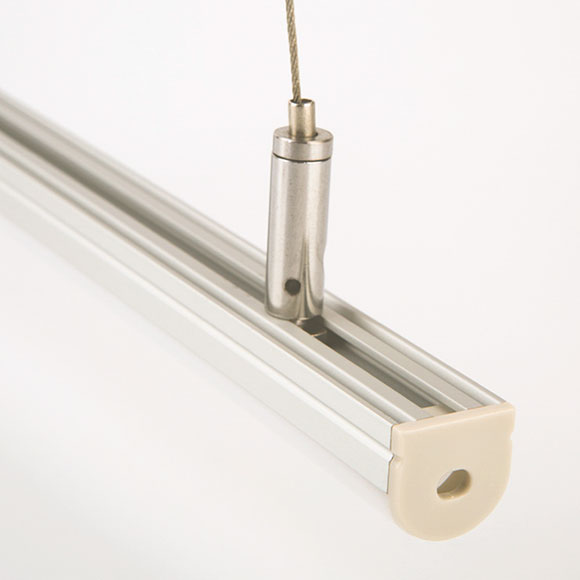

Round aluminum profile extrusion for suspension

FEATURES

  1. AL6063 Silver anodized Aluminium
  2. Difusser: PMMA opal
  3. Anodized painting finish

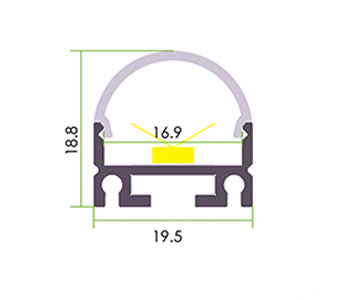

  4. Dimension: W19.5mm*H18.8mm

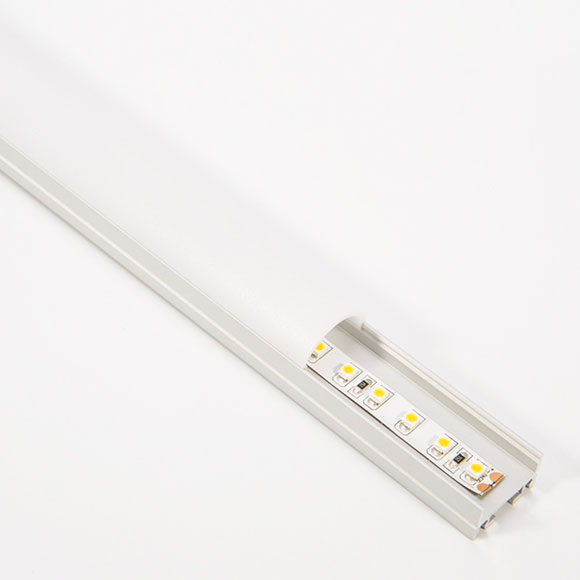

  5. Suitable for light source width 15m Max and <20W
  6. Standard length 1m or 2m, 4m Max
  7. IP20 indoor use only
  8. Excellent heat dissipation with top-level 6060 aluminum
  9. Slim surface mounted flexible led profile Can be bent by both hand or tooling to any shape as you like
  • SPECIFICATION
  • DIMENSION
  • DOWNLOAD
PART NO.: COMPATIBLE WIDTH COMPATIBLE POWER WATERPROOF LEVEL STANDARD UNIT HOUSING COLOR COVER COLOR CABLE OUTPUT COVER CONNECTOR END CAP MOUNTING CLIP
mm W IP m


Pcs Pcs
Pcs Pcs
FL-AT4 <15 <20 20 1/2 Silver Frosted/milky/clear Side 2 0 2 2
FL-AT4 >15 <20 20 1/2 Sliver Frosted/milky/clear Side 2 0 2 2
FL-AT4 <15 <20 20 1/2 Sliver Frosted/milky/clear Side 2 0 2 2
