FL-24FS2835-120-C

Constant current IC 2835 60 LEDs/m

FEATURES

  1. Long life 50,000 hours
  2. Safe low voltage (12Vdc or 24Vdc)
  3. Using ultra thick pure copper PCB
  4. Ultra low power consumption, low energy efficiency
  5. Constant current IC design, constant brightness no light decay
  6. Single End Supply Max 10m
  7. Double End Supply Max 20m
  8. High CRI80 or CRI90 above
  9. 120° wide view angle
  10. Compatible with various of aluminum profiles
  11. Full dimmable with a separate lighting dimmer
  12. Suitable for cove, office, ,hotel, retail, architectural lighting etc.
  13. 3 years warranty
  • SPECIFICATION

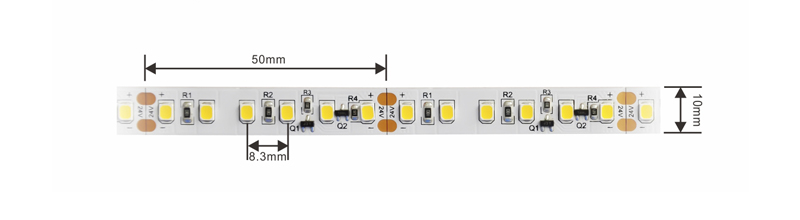

  • DIMENSION
  • DOWNLOAD
  • ACCESSORIES
PART NO.: VOLTAGE LENGTH LED QTY LED TYPE COLOR POWER LUMEN PCB WIDTH CUTTABLE UNIT CRI MAX RUN
V m Pcs/m K W lm mm mm Ra m
FL-24FS2835-120-WW-IP20-C 24V 5 120 2835 3000K 18W 1440 10 100 >80 10
FL-24FS2835-120-NW-IP20-C 24V 5 120 2835 4000K 18W 1510 10 100 >80 10
FL-24FS2835-120-W-IP20-C 24V 5 120 2835 6000K 18W 1640 10 100 >80 10


Datasheet

IMAGE PART NO. NAME DESCRIPTION
img200*123 FL-S-150 POWER SUPPLY 150W
LED power supply 150W, 12V/12.5A, 24V/6.25A, input voltage 110-240V, Nameplate Output Power 50W
img200*123 LS2 LED controller
LED controller 5-in-1 for single color, CCT, RGB, RGBW, RGBWW
img200*123 FL-P002 Aluminum profiles
FL-P002 aluminum profile, silver/white/black are available
