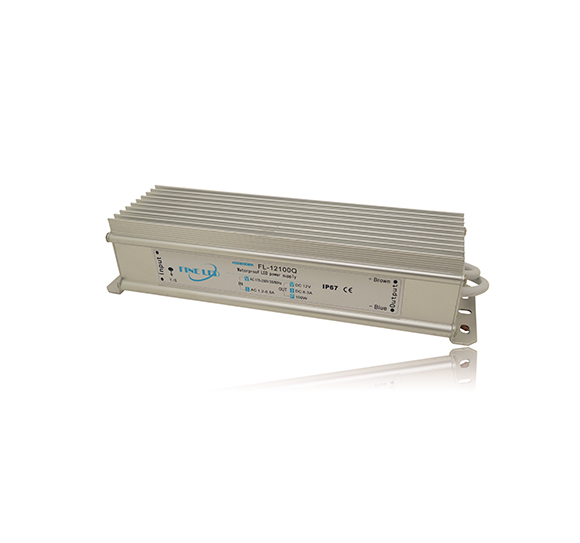

FL-12100Q

Waterproof power supply 12V 8300mA 100W Aluminum case for LED

FEATURES

  1. Constant voltage design
  2. Universal AC input/ Full range
  3. Level VI energy efficiency
  4. Protections: Short circuit / Over voltage / Over current
  5. Class II power (without earth pin): IEC320-C8
  6. Pass LPS (Limited power source)
  7. Aluminum case with IP67 level
  8. Suitable for indoor LED lighting and moving sign applications
  9. 100% full load burn-in test
  10. 2 years Warranty
  • SPECIFICATION
  • DIMENSION
  • DOWNLOAD
PART NO.: INPUT FREQUENCY POWER RATING VOLTAGE RATING CURRENT RATING EFFICIENCY OUTPUT TYPE RIPPLE & NOISE SAFETY APPROVAL MATERIAL ENERGY EFFICIENCY
V Hz W V mA %
Vp-p


FL-12100Q 100-240V 47-63Hz 100 12 8300 88% Cable <150 UL/cUL 8570 FCC CE Aluminum Class II
FL-24100Q 100-240V 47-63Hz 100 24 4650 88% Cable <150 UL/Cul 8570 FCC CE Aluminum Class II

Datasheet
