FL-24FS2216-120 (4mm/5mm)

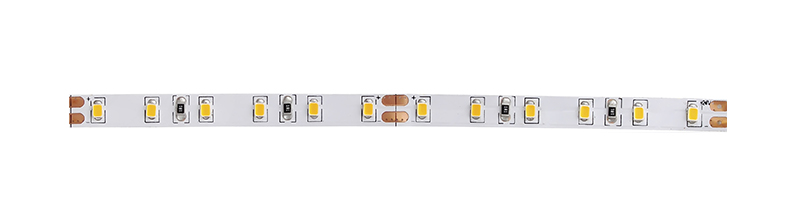

Constant voltage standard LED strip 2216 120 LEDs/m 4mm/5mm 24V/12V

FEATURES

  1. Long life 50,000 hours
  2. Safe low voltage (12Vdc or 24Vdc)
  3. Ultra low power consumption, low energy efficiency
  4. Using high brightness Epistar 2216 SMD LED
  5. High CRI80 or CRI90 above
  6. 120° wide view angle
  7. Compatible with various of aluminum profiles
  8. Full dimmable with a separate lighting dimmer
  9. Suitable for cove, office, ,hotel, retail, architectural lighting etc.
  10. 3 years warranty
  • SPECIFICATION
  • DIMENSION
  • DOWNLOAD
  • ACCESSORIES
PART NO.: VOLTAGE LENGTH LED QTY LED TYPE COLOR POWER LUMEN PCB WIDTH CUTTABLE UNIT CRI MAX RUN
V m Pcs/m K W lm mm mm Ra m
FL-24FS2216-120-WW-IP20 24V 5 120 2216 3000K 6W 450 4/5 25 >90 5
FL-24FS2216-120-NW-IP20 24V 5 120 2216 4000K 6W 480 4/5 25 >90 5
FL-24FS2216-120-W-IP20 24V 5 120 2216 6000K 6W 500 4/5 25 >90 5


Datasheet

IMAGE PART NO. NAME DESCRIPTION
img200*123 ZF120A-1205000 LED power supply 60W
LED driver 60W (12V/5A, 24V,2.5A)
img200*123 LS2 LED controller
LED controller 5-in-1 for single color, CCT, RGB, RGBW, RGBWW
img200*123 FL-P002 Aluminum profiles
FL-P002 aluminum profile, silver/white/black are available
